1.1. Motivation

Multimodal models combine multiple data types. Common inputs include text, images, audio, video, and sensor data. Many deployed systems now use several inputs within a single pipeline. Examples include autonomous driving systems using cameras, LiDAR, and radar, and medical systems that combine images with clinical records. Multimodal large language models (MLLMs), vision–language models (VLMs), and artificial intelligence (AI) agents extend the same trend. These systems use richer input contexts than unimodal models, but they also create more attack surfaces.

Each added modality creates a new path for attack. An attacker may alter one input stream, exploit a mismatch between two input streams, or interfere with the way a model combines them. Attacks that exploit interactions between modalities are cross-modal attacks. Those attacks do not appear in the same form in a single-modality setting. As a result, adversarial robustness has become a central problem for multimodal AI.

1.2. Problem Statement and Scope

Adversarial attacks on multimodal systems exploit individual modalities or the links between modalities. A malicious image may change the answer to a text question. A harmful prompt may steer the interpretation of an image. A corrupted sensor signal may alter both perception and later decisions. Recent works have described several of these risks in the vision–language domain [1–4]. The field still lacks a clear view of how to defend multimodal systems and test those defences consistently.

The paper focuses on adversarial robustness in multimodal AI. The main focus is inference-time manipulation of inputs, prompts, context, and agent interactions. The review covers evasion attacks, cross-modal attacks, prompt injection, and related failures in multimodal reasoning. The review then studies defence methods and robustness evaluation for those settings. The paper does not aim to cover all AI security topics. The paper does not review data poisoning, membership inference, model extraction, watermarking, or deployment controls, such as sandboxing, network isolation, or zero-trust design. Those topics remain important to AI security, but they fall outside the scope of this work.

The paper provides a structured review of multimodal adversarial robustness, with an emphasis on defence methods and evaluation. The threat landscape appears first because the later defence and evaluation sections depend on a clear view of what attackers are capable of, how the threat landscape changes, and which system components they target.

1.3. Review Scope and Literature Selection

The review follows a structured narrative approach. We collected papers from arXiv (Cornell University), Institute Of Electrical And Electronics Engineers (IEEE) Xplore, and the Association for Computational Linguistics (ACL) anthology. We then followed references in key papers to identify earlier works and subsequent follow-up papers. The review places greater weight on recent papers because multimodal AI evolves rapidly. The review also includes a small set of foundational papers that define models, attacks, or defence ideas that later work builds on.

We included papers that study adversarial threats, defence methods, or robustness evaluation of systems that process or align multiple modalities. The scope covers foundational multi-modal models (e.g. CLIP), VLMs, MLLMs, and selected multi-sensor systems. We usually excluded papers that study only single modality. We kept such papers when a method or idea helps to explain a multimodal defence category or a design choice in the taxonomy.

Our primary contributions are as follows:

Work is structured to logically guide the reader from the problem to its solutions and their measurement. Section 2 defines the background and the threat model used in the review. Section 3 covers related work and the threat landscape. Section 4 presents the taxonomy of multimodal defence methods. Section 5 reviews robustness evaluation. Section 6 discusses key findings and future work. Section 7 concludes the paper.

2.1. Threat Model

The paper studies adversaries that aim to cause an unsafe or incorrect system outcome in a multimodal setting. Depending on the task, the attacker may seek a wrong class label, failed retrieval, harmful generated content, a successful jailbreak, a prompt- injection failure, or an incorrect action chosen by an agent. Some attacks target a single output. Other attacks target a sequence of outputs or actions.

The literature usually describes attacker knowledge with three standard settings. In a white-box setting, the attacker knows the model architecture and has access to parameters or gradients. In a black-box setting, the attacker interacts with the system only through queries and observed outputs. In a grey-box setting, the attacker knows part of the system, such as the model family, training setup, or a surrogate model, but not the full deployed model.

The main focus of the paper is inference-time access. The attacker changes one or more inputs at test time, changes the interaction context, or injects malicious content through external tools or retrieved data. Common entry points include text prompts, images, audio, video, web content, retrieved documents, and sensor signals. In agentic systems, the attacker may also manipulate the environment that provides observations or tool outputs to the model.

A multimodal attack may target several system components. The first target is the raw input stream of a modality. The second target is the modality encoder that converts raw input into features. The third target is the alignment or fusion mechanism that links representations across modalities. The fourth target is the downstream module that produces labels, generated responses, or actions. This distinction matters because the same perturbation can produce different failures depending on where the system integrates information.

Attack form also varies across multimodal settings. A perturbation may affect single modality or several modalities at once. A perturbation may be digital or physical. A perturbation may be low-level, such as changes in pixels, waveform samples, or point clouds, or semantic, such as a hidden instruction, a misleading caption, or a cross-modal contradiction. Agentic systems add a further case in which the attacker shapes the context in several interaction steps to influence reasoning or behaviour.

The threat model in this paper treats those attacks as practical security risks rather than only as benchmark artifacts. Multimodal systems already operate in settings where attackers can control prompts, web content, uploaded media, or physical sensor inputs. The combination of multiple input channels increases the number of attack paths and makes failure analysis harder, because a system may appear robust when each modality is tested in isolation but fail when modalities interact. The threat landscape in later sections builds on this view.

3.1. Threat Landscape

The attack landscape for multimodal systems has expanded from single-input exploits to system-level attacks. The three phases mentioned below summarise broad trends in the literature. The phases are not strict historical boundaries. Several attack types coexist, but the sequence helps to explain how the field moved from modality-local failures to attacks on multimodal interaction, reasoning, and action.

Phase 1: Single-modality exploits: Early work targeted one input channel within a multimodal system. Attackers perturbed a text prompt, an image, or another single modality to change the final output or bypass a safety mechanism. These attacks showed that multimodal systems can inherit vulnerabilities from their unimodal components [8, 9].

Phase 2: Cross-modal attacks: Later work moved from single-channel perturbations to attacks that exploit the coupling between modalities. In this setting, an attacker manipulates one modality to change the model response in another modality or in the fused representation. VLMs provide many examples of this pattern, including attacks in which an adversarial image changes text-based reasoning or a textual input changes visual interpretation [6, 7]. This phase marked a shift from modality-local failures to failures that arise from cross-modal alignment and fusion.

Phase 3: System-level and emerging-modality threats: A recent work studies attacks on more complex multimodal systems [10, 11]. This line of research includes systems that process audio [12], depth [13], thermal data [14], and other sensory inputs beyond standard vision–language benchmarks. The same period also saw the emergence of multimodal agents that interact with tools and external environments. In those settings, an attacker can manipulate perception, retrieved context, or the surrounding environment to alter later reasoning and action. These developments increase the number of attack paths and make robustness evaluation harder, because static input perturbation tests no longer capture the full failure surface [10, 11, 15].

3.2. The Agentic Frontier

Autonomous multimodal agents introduce risks that go beyond static adversarial examples. An agent not only predicts an output from a fixed input but perceives an environment, reasons over intermediate states, stores context, and takes actions through tools or application programming interfaces (APIs). Each step creates a new attack surface. Recent works show that multimodal attacks on agents can target visual and textual inputs, environmental signals, internal reasoning components, and persistent memory [10, 15].

Cross-modal prompt injection: Cross-modal prompt injection coordinates attacks across multiple channels. Wang et al. [16] propose CrossInject, a black-box attack framework for multimodal agents. CrossInject combines two components: visual latent alignment, which injects malicious semantics into the visual input via generated or perturbed images, and textual guidance enhancement, which optimises the textual instruction to better align with the attacker’s goal. The reported results show that CrossInject outperforms prior attacks by at least 30.1% in attack success rate across diverse tasks. The main lesson is that multimodal prompt injection can be more effective when the attacker coordinates both modalities, rather than attacking only one input channel.

Environmental and sensory manipulation: Other attacks manipulate the environment that the agent observes. Aichberger et al. [11] introduce Malicious Image Patches (MIPs) for multimodal operating system (OS) agents. An MIP is a perturbed screen region that appears inside a screenshot and induces harmful API-level behaviour. The authors show that an MIP can be embedded in a desktop wallpaper or a social media post and hijack multiple OS agents during benign tasks. Chen et al. [15] study active environmental injection attacks against Android agents. Their attack uses environmental elements such as notifications to interfere with agent execution. The paper identifies two main vulnerabilities: adversarial content injection via multimodal interaction interfaces and reasoning gaps during the delay between perception and action. The reported attack success rate reaches 93% on AndroidWorld when both vulnerabilities are combined. Taken together, these papers show that the agent environment itself becomes an attack vector once the model acts on screenshots, notifications, or other external signals.

Reasoning and goal manipulation: Agentic attacks can also target intermediate reasoning components. Wu et al. [10] study multimodal web agents in a realistic adversarial setting on top of VisualWebArena. The authors propose the agent robustness evaluation framework, which models the agent as a graph of components and tracks how adversarial influence propagates through that graph. Their experiments show that an attacker can hijack agents that use reflection and tree search with small perturbations to a single image. The same study also shows a more subtle result about inference-time compute. Components such as evaluators and value functions can reduce attack success when they remain uncompromised, but they also create new attack paths when an attacker can manipulate them. This result matters because it shows that added reasoning does not automatically improve security.

Memory and context manipulation: Persistent context creates another attack surface. Patlan et al. [17] study context manipulation in Web3 agents and identify memory injection as a distinct threat. In their setting, malicious content is stored in history rather than in the current user prompt. The poisoned memory then influences later actions, including actions taken for other users or on other platforms when memory is shared. The paper shows that memory injection is more persistent and more difficult to block than ordinary prompt injection. It also shows that prompt-level defences and prompt-injection detectors provide limited protection once stored context is corrupted, whereas fine-tuning-based defences substantially improve robustness. This result shows a shift from single-turn prompt safety to long-term context integrity.

Papers in this section show a common pattern. Adversarial threats against multimodal agents no longer target only one prediction step. They target the full perception–reasoning–action loop, including intermediate components and stored context. The attack assumptions differ across papers. Environmental attacks often depend on access to the observed interface or timing of execution. Memory attacks depend on the way the agent stores and reuses history. Reasoning attacks depend on access to components that shape action selection. Despite those differences, the broader lesson remains consistent: once a multimodal model becomes an agent, security analysis must move beyond input perturbation to system-level robustness.

3.3. Audio Frontier

Audio adds a distinct attack surface to multimodal systems. Unlike text, speech is continuous, time-dependent, and shaped by acoustic and conversational context. These properties create attack paths that do not appear in text-only interfaces in the same form. Recent work shows that adversaries can exploit audio at several levels: waveform perturbations, speech-token manipulations, conversational framing, and cross-modal disruption in audio– visual models [5, 12, 18–20].

Audio jailbreaks: Several papers show that the audio channel alone can bypass alignment safeguards. Gupta et al. [12] study universal audio jailbreaks in audio–language models. Their attack constructs perturbations that generalise across prompts, tasks, and base audio samples, and remain effective under simulated real-world playback conditions. The same paper also shows that successful perturbations encode imperceptible toxic speech patterns into a signal, suggesting that the model responds to linguistic cues embedded in the waveform rather than to noise alone. Ma et al. [18] study a different attack surface in SpeechGPT. Their method targets the model’s discrete speech–token interface. The attack uses greedy search to modify adversarial token sequences and then synthesises them into audio using a vocoder (voice encoder). The reported results show attack success rate of up to 89% across restricted task categories. Taken together, these papers show that audio jailbreaks can bypass safety controls at both continuous waveform and discrete-token levels.

Conversational framing attacks: Not all audio attacks rely on signal perturbation. Chiu et al. [19] introduce flanking attack, a voice-based jailbreak method for multimodal LLMs. The attack inserts a harmful request between benign, narrative-driven prompts, making the full interaction appearing less suspicious. The reported results show average attack success rates from 0.67 to 0.93 across seven forbidden scenarios, with an overall average of 0.81. This result matters because it shows that audio threats also arise from the design of context. A model can fail even when the waveform itself remains natural, and the attack acts only through conversational framing.

Cross-modal attacks in audio–visual models: Audio also serves as one part of a larger cross-modal attack surface. Zhang et al. [20] study adversarial robustness in audio–visual models from two directions. The first attack, temporal invariance attack, exploits temporal redundancy across consecutive segments. The second attack, modality misalignment attack, weakens the semantic correspondence between audio and video. The paper argues that temporal consistency and inter-modal correlation are central properties of audio–visual learning, and that both can be leveraged as attack vectors. This finding is important for multimodal security because it shifts attention from attacks on one modality to attacks on the fusion process itself.

Authenticity and detection challenges: The audio frontier also includes direct manipulation of source media, such as voice cloning, partial splicing, and coordinated audio–visual deepfakes. Luong et al. [21] introduce Llama Partial Spoof, a 130-hour dataset of fully and partially fake speech built with large language models and voice cloning systems. Their results show that current fake-speech detectors struggle to generalise to unseen scenarios, with the best-reported equal error rate of 24.49%. Cai et al. [22] introduce AV-Deepfake1M, a large-scale dataset with more than 1 million manipulated audio– visual videos for temporal localisation and detection. The benchmark shows a marked drop in performance for current detection and localisation methods compared with earlier datasets. These papers do not study jailbreaks in the narrow sense, but they are directly relevant to multimodal robustness because they show how hard it is to verify the authenticity and temporal consistency of audio and audio–visual inputs.

Papers in this section show a common pattern. Audio threats in multimodal systems appear at several layers. Gupta et al. [12] target the waveform. Ma et al. [18] target the speech–token interface. Chiu et al. [19] target conversational context. Zhang et al. [20] target temporal consistency and cross-modal alignment. Luong et al. [21] and Cai et al. [22] show that authenticity checks remain weak for partial spoofing and coordinated audio–visual manipulations. The broader lesson is that transcript filtering alone is not enough. Robust defence for audio-enabled multimodal systems must address acoustic perturbations, speech–token processing, conversational context, cross-modal fusion, and media authenticity together.

3.4. Sensory Frontier

The threat landscape extends beyond text, images, and audio. Many deployed systems rely on LiDAR, thermal cameras, infrared sensors, ultrasound scanners, and other domain-specific inputs. These sensors support safety-critical tasks in driving, surveillance, and medicine. They also create new attack paths because the model must process signals with different physical properties and then combine them in a shared decision pipeline.

The first line of work studies transfer across heterogeneous sensing modalities. Gong et al. [14] propose multiform attack, a dual-layer optimisation framework for cross-modality adversarial transfer. The method first learns universal perturbations within a single modality via gradient-based optimisation, then uses an evolutionary search to identify shared perturbations that transfer across modalities. The paper focuses on the transfer between RGB, infrared, and thermal images. The main lesson is that an attacker does not need identical sensor outputs to reuse an attack. If the optimisation can capture structure shared across heterogeneous sensors, perturbations can transfer across modalities that are produced by different hardware.

Physical attacks on depth estimation exhibit a similar pattern in autonomous driving. Zheng et al. [13] propose 3D Depth Fool (3D² Fool), a 3D texture-based attack against monocular depth estimation. The attack paints adversarial camouflage across the full surface of a vehicle, rather than on a small 2D patch. The optimisation also accounts for viewpoint changes and adverse weather, such as rain and fog. Real-world tests with printed 3D textures on physical vehicle models show depth estimation errors exceeding 10 meters. This result matters because it shows that depth models can be fooled by physical textures that remain effective under realistic viewing conditions.

Another work attacks fusion directly. Tu et al. [23] study multi- sensor detectors that combine LiDAR and camera inputs. Their attack inserts a physically realisable adversarial object on top of a host vehicle and renders it consistently into both the LiDAR sweep and the camera image. The results show that a single universal adversary can hide host vehicles from state-of-the-art multimodal detectors. The same study also shows that attacking the image branch alone is almost as strong as attacking both modalities together. In addition, projection of corrupted image features into 3D can create distant false positives. The key lesson is simple: fusion does not remove the weakness of image features, and in some architectures, the fusion process can spread that weakness further.

Medical imaging pipelines face a different but equally important class of threats. Byra et al. [24] attack a deep model for fatty liver disease classification by changing the ultrasound reconstruction process rather than the final image pixels. The attack perturbs reconstruction parameters, such as attenuation compensation and compression thresholds, via zeroth-order optimisation. The reported success rate reaches 48%. This paper matters because it shifts the attack surface from image post-processing to signal reconstruction. A medical model can fail before a standard digital image is even formed.

Medical MLLMs introduce another failure mode. Huang et al. [25] study mismatched malicious attacks and optimised mismatched attacks on Med-MLLMs. Their work builds the 3MAD dataset and proposes the multimodal cross-optimisation method (MCM), which jointly optimises image and text inputs during jailbreak generation. The attacks target cases where the medical image, anatomical context, and query do not match cleanly, or where a malicious clinical request is combined with mismatched multimodal input. The paper shows that Med-MLLMs remain vulnerable under both white-box and transfer settings. The broader lesson is that medical multi-modal models do not reliably verify semantic consistency between image content and medical queries before producing an answer.

The papers in this section show three recurring weaknesses. First, attackers can exploit the physical acquisition process, as in ultra-sound reconstruction attacks [24]. Second, attackers can place physically realisable perturbations into the environment, as in 3D texture attacks on depth estimation and adversarial objects against LiDAR-camera fusion [13, 23]. Third, attackers can exploit failures in cross-modal consistency, as in Med-MLLM mismatched attacks and heterogeneous cross-sensor transfer [14, 25]. These results show that unimodal safeguards are not enough in sensor-rich systems. Robust evaluation in the sensory frontier must account for physical deployment constraints, reconstruction pipelines, fusion failures, and semantic consistency across modalities.

4.1. Proactive Defences

Proactive defences improve safety and robustness before deployment. Instead of reacting to harmful inputs at inference time, these methods modify the model, the training data, or the training objective to make unsafe or unstable behaviour less likely. We divide them into two groups: Robustness-focused training, which aims to preserve correct behaviour under perturbation, and safety alignment training, which aims to reduce harmful or policy- violating outputs through alignment-oriented supervision. Figure 2 summarises this branch of taxonomy.

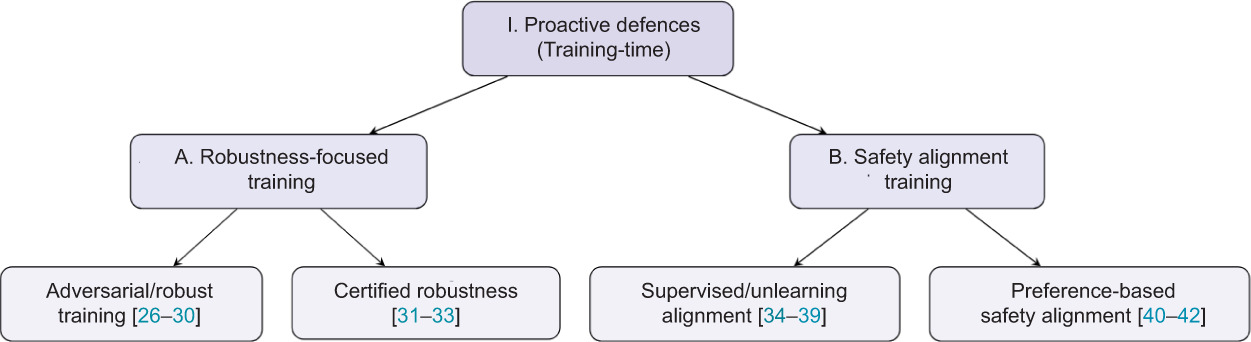

Figure 2

Taxonomy of proactive defences, dividing into robustness-focused training and safety alignment training categories.

Robustness-focused training: Robustness-focused training aims to keep the model stable when one or more modalities are perturbed, corrupted, or missing. This is harder in multimodal systems than in unimodal ones because failures often arise at the interaction point between modalities rather than inside a single encoder. As a result, methods in this group intervene at different parts of the pipeline, including the image and text encoders, the projector or alignment layer, the fusion stage, and the final prediction.

Adversarial/robust training. The first line of work improves robustness empirically by exposing the model to adversarial or corrupted inputs during training. Zhou et al. [26] propose multimodal contrastive adversarial training (MMCoA) for CLIP-style VLMs. MMCoA aligns clean text embeddings with adversarial image embeddings and adversarial text embeddings with clean image embeddings. This strengthens both encoders under multimodal attack rather than only the image branch. Their results show that multimodal adversarial training (MAT) improves robustness more than uni-modal adversarial training across image, text, and multimodal attacks.

Waseda et al. [27] also defend against multimodal attacks by perturbing both image and text during training. Their MAT framework studies how one-to-many image–text augmentation can preserve semantic diversity while reducing harmful distribution shift. The results show that MAT outperforms unimodal defences in image– text retrieval. This suggests that multimodal robustness depends on preserving cross-modal alignment during training, rather than hardening a single modality in isolation.

Recent work extends the same idea to multimodal jailbreaks in MLLMs. Lu et al. [28] propose E2AT, an efficient end-to-end adversarial training framework for MLLMs. E2AT does not retrain the full model from scratch. Instead, it focuses on projector-level adversarial training and combines this with dynamic joint multi-modal optimisation, which balances standard and adversarial objectives across text and image channels. The reported results show an average improvement of 34% over the existing baselines for both visual and textual jailbreak attacks while preserving clean task performance. This shows that robustness can be improved at the alignment bottleneck without the full cost of end-to-end adversarial training over all parameters.

A second line of work defends the interaction point between modalities more directly. Yang et al. [29] show that standard fusion models remain vulnerable even when only one modality is attacked. To address this, they propose an adversarially robust fusion strategy that compares information across modalities, detects inconsistencies in the perturbed source, and gates that source, ensuring that only unperturbed modalities contribute to the final decision. Their method improves robustness across action recognition, object detection, and sentiment analysis without degrading performance on clean data. Tsai et al. [30] study a different setting in which multiple modalities are converted into generalised text prompts. Their text-centric adversarial prompting method improves robustness to noisy inputs, missing modalities, and changing input order. Together, these papers show that proactive robustness does not always require full end-to-end retraining. In some architectures, the main weakness lies in the fusion or alignment stage, and defending that stage can give broad gains.

Certified robustness. The second family of robustness-focused methods aims to provide formal guarantees under a bounded threat model. This is harder in multimodal systems than in unimodal classifiers because the method must account for heterogeneous inputs and, in some settings, semantic transformations in the physical world. Wang et al. [31] propose MMCert, the first certified defence designed specifically for multimodal models. MMCert uses independent sub-sampling and ablation across modalities to derive a lower bound on model performance under bounded perturbations to both modalities. Their experiments on multimodal road segmentation and multimodal emotion recognition show that MMCert outperforms certified defences from unimodal settings.

Huang et al. [32] extend certification to multi-sensor fusion under semantic transformations such as rotation and shifting in the physical world. COMMIT combines anisotropic randomised smoothing with a grid-based splitting method to characterise semantic attacks in multi-sensor fusion systems. The paper also introduces efficient certification procedures for detection accuracy and Intersection over Union (IoU) in large-scale fusion models. Their benchmark shows that certification for multi-sensor fusion can be substantially higher than for single-modal models under the same semantic threat class. This shows that multimodal certification must reflect geometry of the attack, not only an abstract norm-bound.

Another work studies the training conditions that make multimodal robustness certifiable. Yang et al. [33] analyse robustness through the lens of modality preference. Their theory shows that robustness depends not only on unimodal representation margins but also on how reliably the model integrates modalities. It also shows that a preference for one modality can make attacks on that modality more effective. To address this, they propose certifiable robust multimodal training (CRMT), which regularises unimodal classifiers and integration weights to improve robustness in a certifiable way. CRMT is useful here because it links a common multimodal failure mode, namely modality imbalance, to a concrete training–time intervention.

The papers categorised under robustness-focused training show a clear shift in emphasis within proactive multimodal defence research. Earlier work often focused on robustness within a single modality, especially the image branch, or assumed that stronger unimodal robustness would transfer naturally to the multimodal setting [26, 27].

More recent methods instead defend the interaction point between modalities, either through joint adversarial training over image and text inputs [26–28], through fusion-aware inconsistency detection and gating [29], or through explicit certification of multimodal predictions under bounded perturbations or semantic transformations [31–33].

The assumptions still differ across methods. MAT requires access to attack generation during fine-tuning and can become costly as model size grows [28]. Fusion-aware methods assume that disagreement between modalities can be detected reliably and used to isolate the perturbed source [29]. Certified methods provide stronger guarantees, but only under restricted perturbation or transformation classes [31, 32]. In addition, CRMT shows that modality preference can render a channel disproportionately fragile, even within a multimodal system [33]. The main conclusion is not that one robustness-focused defence solves the multimodal problem, but that proactive robustness must be designed around cross-modal interaction rather than added only at the level of isolated inputs.

Safety alignment training: Safety alignment training aims to reduce harmful, ungrounded, or policy-violating outputs by shaping model behaviour during training. Unlike robustness-focused training, which aims to preserve correct predictions under perturbation, safety alignment methods focus on the final response after multi-modal information has been processed. We divide them into two groups: supervised/unlearning alignment, which relies on curated supervision or targeted knowledge removal, and preference-based safety alignment, which uses ranked feedback or corrective supervision to steer behaviour.

Supervised/unlearning alignment. The first line of work aligns multi-modal models through curated safety supervision. Zong et al. [34] propose VLGuard, a dedicated vision–language safety dataset for post hoc fine-tuning. Their results show that integrating VLGuard into standard vision–language fine-tuning, or applying it after instruction tuning, improves safety while preserving helpfulness, with black-box attack success rates approaching zero in many settings. This suggests that curated multimodal safety data can provide a strong baseline guardrail at relatively low cost.

Later work shows that standard safety fine-tuning can still be brittle. Chen et al. [35] identify a failure mode they call the safety mirage, in which fine-tuning reinforces spurious correlations between superficial textual patterns and refusal behaviour, rather than learning deeper harm-sensitive representations. They show that this leaves fine-tuned VLMs vulnerable to simple one-word attacks and also increases over prudence on benign inputs. To address this, they propose machine unlearning as an alternative alignment mechanism. Their results show that unlearning can reduce attack success rates by up to 60.2% while decreasing unnecessary benign refusals by more than 84.2%. The main lesson is that naive supervised labels can produce shortcut-based safety behaviour rather than genuine multimodal safety.

Chakraborty et al. [36] extend the unlearning idea to cross-modal safety alignment. Their main claim is that, because many multimodal systems fuse inputs into the language space, textual unlearning alone can transfer well to multimodal safety. Across several datasets, they show that textual unlearning can reduce attack success rates to below 8%, and in some settings close to 2% for both text-only and vision–text attacks while preserving utility. They also report that multimodal unlearning data adds little benefit while substantially increasing computational cost. This strengthens the argument that the language component remains a key alignment bottleneck in many multimodal systems.

Other work improves safety alignment by adding richer reasoning structure or lower-cost multimodal supervision. Ding et al. [37] argue that the existing safety fine-tuning methods suffer from a safety reasoning gap: they can reject clearly unsafe prompts, but they struggle with harder cases that require visual reasoning across multiple images. To address this, they introduce the multi-image safety (MIS) dataset, which pairs multi-image inputs with safety chain-of-thought labels that explicitly encode the required reasoning steps. Their experiments show that MIS fine-tuning improves safety on challenging multi-image tasks while preserving general capabilities. In a different direction, Lu et al. [38] propose SEA, a low-resource alignment method that synthesises modality embeddings directly in the encoder output space and combines them with text-only safety data. SEA is designed for settings where multimodal safety datasets are too costly to collect. The results show that these synthetic embeddings can be generated quickly and can improve the security of image-, video-, and audio-based MLLMs. Together, these papers show that supervised safety alignment becomes stronger when it moves beyond static input–output labels and targets the language–space bottleneck directly or adds explicit multimodal reasoning structure.

An emerging direction in this branch is representation-centric unlearning. Chen et al. [39] propose AUVIC, a training-time framework for adversarial unlearning of target visual concepts in MLLMs. Although AUVIC is motivated mainly by privacy and right-to-be-forgotten settings rather than jailbreak defence, it is relevant here because it shows that multimodal safety-relevant behaviour can also be changed by editing internal concept representations. AUVIC uses adversarial perturbations to isolate the target visual concept during unlearning and introduces mechanisms to preserve related non-target concepts, achieving strong forgetting with limited collateral degradation. In this taxonomy, AUVIC broadens safety alignment beyond refusal-style supervision and shows that harmful or sensitive multimodal concepts can be removed at the representation level during training.

Preference-based safety alignment. The second line of work aligns multimodal behaviour through ranking, correction, or preference optimisation rather than direct supervised labels. Bai et al. [40] introduce Constitutional AI, a foundational preference-based alignment framework in which a model critiques and revises its outputs according to explicit principles, and reinforcement learning is then performed using AI feedback rather than RLHF. Although the method was introduced for text-only assistants, it remains relevant here as a conceptual precursor for scalable safety alignment with fewer human labels.

RLHF-V brings that idea into the multimodal setting. Yu et al. [41] collect fine-grained human corrections on hallucinated segments of model outputs and train the model with dense direct preference optimisation. Their results show that, with only 1.4K annotated samples, RLHF-V reduces hallucination rates by 34.8% and outperforms a concurrent multimodal RLHF baseline trained on much more data. This suggests that multimodal preference alignment benefits from feedback that is localised to the erroneous segments rather than assigned only at the full-response level.

Liu et al. [42] focus on a different problem: modality imbalance during reasoning. They propose modality-balancing preference optimisation (MBPO), which constructs hard-to-reject responses by adversarially perturbing input images, so that the model relies too heavily on language priors and produces visually ungrounded outputs. These hard negatives are then combined with online preference optimisation using verifiable rewards. The reported results show improvements on challenging vision–language tasks and reduced hallucination. Together, RLHF-V and MBPO suggest that preference-based alignment is especially effective when negative examples are informative, localised, and directly tied to failures of multimodal grounding.

The papers categorised under safety alignment training show a clear shift from simple supervised rejection behaviour towards deeper behaviour shaping through unlearning, structured reasoning, and preference optimisation. Curated supervised safety tuning can be effective when strong multimodal safety data is available [34], but later work shows that such tuning can also produce brittle shortcuts through spurious textual correlations [35]. Unlearning-based methods attempt to remove harmful behaviour more directly [35, 36], while a recent work also points towards representation-level editing of harmful or sensitive multimodal concepts [39]. Preference-based methods refine the model using principles, segment-level corrections, or adversarially mined negatives [40–42]. The assumptions still differ: supervised methods depend on the coverage and quality of curated safety data, unlearning depends on the ability to erase harmful behaviour without damaging useful capabilities, and preference optimisation depends on reliable evaluators and well-constructed comparison data. The broader lesson is that multimodal safety alignment cannot rely on simple refusal supervision alone. Stronger alignment requires removing harmful behaviour at its source, improving the model’s reasoning over multimodal evidence, or correcting modality imbalance through richer feedback signals.

4.2. Reactive Defences

Reactive defences operate at inference time. They detect, transform, or constrain unsafe behaviour without changing the base model during deployment. In multimodal systems, they can intervene before the model processes the input, during internal reasoning, or while decoding the final response. We divide them into two groups: Input sanitisation, which modifies suspicious inputs before they reach the main reasoning stack, and model guardrails, which detect, verify, filter, or steer behaviour closer to the model’s internal decision process (Figure 3).

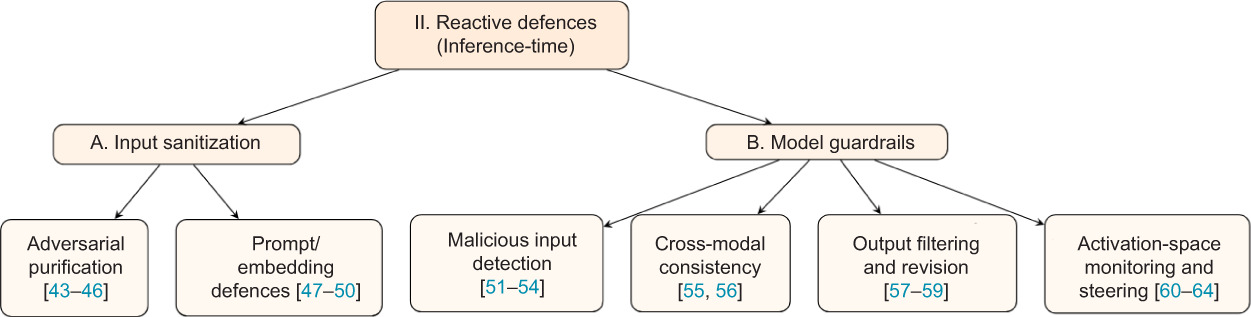

Figure 3

Taxonomy of reactive defences, dividing into input-sanitisation and model guardrails categories.

Input sanitisation: Input sanitisation transforms potentially malicious inputs into forms that are safer for the model to process. In multimodal systems, this can happen either at the raw signal level, for example, by purifying perturbed pixels or jointly denoising image-text inputs, or at the prompt level by rewriting or projecting the input towards safer instructions or embeddings.

Adversarial purification. Adversarial purification reconstructs a safer version of the input before the target multimodal model performs joint reasoning. In vision–language systems, this line of work is motivated by the observation that small perturbations in visual inputs can distort hidden representations and induce unsafe or incorrect outputs. Recent purification-based defences, therefore, focus on restoring stable image or multimodal representations while preserving the semantic content needed for downstream reasoning [43, 44].

Fu et al. [43] propose DiffCAP, a diffusion-based purification method for VLMs. DiffCAP gradually injects Gaussian noise into an adversarial image until the embeddings of consecutive noisy images become sufficiently similar, and then applies reverse diffusion to recover a stable image representation. Its main advantage is not only stronger defence performance but also an adaptive stopping rule that reduces hyperparameter sensitivity and unnecessary diffusion steps. This makes purification more practical for VLM deployment because the denoising schedule follows changes in the model’s embedding space rather than relying on a fixed diffusion horizon.

Joint adversarial purification (JAP): It extends purification to multi-modal attacks. Instead of purifying each channel independently, JAP uses cross-modal interaction so that purified visual content helps recover the text, and purified text in turn supports visual denoising [44]. This joint strategy outperforms unimodal purification baselines against both white-box and transfer-based multimodal attacks on vision–language pre-training models. It also supports a key point in the taxonomy: once the attack itself is multimodal, purification that ignores cross-modal semantics is often insufficient.

Diffusion purification methods, such as ADBM and OSCP, remain relevant as technical precursors because they improve the quality and speed of image purification [45, 46]. ADBM replaces the standard reverse diffusion process with a learned bridge from diffused adversarial data back to clean examples, while OSCP distils diffusion purification into a single-step process guided by structural edge information. However, these methods are image-centric, so they are better viewed here as enabling techniques rather than core multimodal defences.

Prompt/embedding defences: A second family of input sanitisation methods modifies the textual instruction or its embedding before the model produces an answer. Wang et al. [47] propose AdaShield, which prepends a safety prompt to the multimodal input. Instead of relying only on a static prompt, AdaShield also introduces an adaptive framework in which an auxiliary defender model iteratively refines defence prompt for the current query. The results show that this strategy improves robustness against structure-based jailbreak attacks while preserving benign-task performance.

Jiang et al. [48] propose RapGuard, which first generates a multimodal safety rationale and then uses it to construct a scenario- specific defensive prompt. This addresses one of the main weaknesses of static guard prompts: they often fail to adapt to the specific risks introduced by different image–text combinations. RapGuard shows that lightweight prompting becomes more effective when it is paired with explicit multimodal reasoning about why the current input may be unsafe.

Other methods operate directly in embedding space, rather than on discrete text. Qiu et al. [49] propose embedding sanitiser (ES) for text-to-image generation. ES assigns a harmfulness score to each token and then selectively removes unsafe components from the prompt embedding while preserving as much benign meaning as possible. The paper argues that sanitising the embedding source of unsafe generation is more robust than relying only on discrete blacklists or post hoc content filters. In a related direction, Chen et al. [50] propose BaThe, which embeds a virtual rejection prompt into soft text embeddings, so that harmful instructions behave like triggers for refusal rather than compliance. BaThe is relevant here because it shows that input sanitisation can be continuous and learned, not only rule-based or lexical.

The papers categorised under input sanitisation show a clear shift from static keyword filtering towards more adaptive transformation of the input. In purification-based methods, the trend is from generic signal denoising towards multimodal or model-aware reconstruction, as seen in DiffCAP and JAP [43, 44]. In prompting-based methods, the trend is from fixed defence prompts towards rationale-aware prompting and continuous embedding manipulation [47–50]. The assumptions still differ. Purification methods assume that adversarial perturbations can be removed without destroying task-relevant semantics, while prompt and embedding defences assume that the base model’s aligned behaviour can still be reactivated if the instruction is reframed appropriately. The broader lesson is that in multimodal systems, effective sanitisation often requires transforming the input at the representation level rather than relying solely on fixed surface-form filters.

Model guardrails: Model guardrails enforce safety during inference. Model guardrails screen inputs, check image–text agreement, revise unsafe outputs, or change internal states. Compared with input sanitisation, model guardrails act later in the pipeline and can catch failures that appear only after joint multimodal reasoning starts.

Malicious input detection: A first family of guardrails detects harmful inputs before or during generation. Oh et al. [51] propose UniGuard, a multimodal guardrail trained on both unimodal and cross-modal harmful signals. UniGuard applies the same guardrail across different MLLMs at inference time with low overhead. The design treats detection as a general safeguard rather than a defence against a single attack family.

Helff et al. [52] introduce LlavaGuard, a family of VLM-based safeguards for evaluating visual content against customisable safety policies. Llava-uard outputs a safety rating, violated categories, and a rationale. The same model family supports both dataset curation and generative model moderation, which makes LlavaGuard a strong example of policy-aware malicious input detection.

Chen et al. [53] propose SafeWatch for video guardrailing. SafeWatch encodes policy chunks in parallel to remove positional bias and prunes visual tokens according to policy relevance. The reported gains in accuracy and cost show that multimodal guard-rails benefit from policy conditioning and selective perception inside the inference pipeline.

Yu et al. [54] propose Test-time IMmunisation (TIM), which combines inference-time detection with online response. TIM trains a gist token to detect jailbreak activity during inference and then performs safety fine-tuning with the detected jailbreak instruction and a refusal answer. TIM partly crosses the line between pure inference and test-time adaptation, but the online trigger still makes TIM a reactive guardrail.

Cross-modal consistency verification: A second family of guardrails checks whether image and text remain semantically coherent. Zhao et al. [55] propose SafeCLIP, which uses the inherent multimodal alignment of LVLMs for zero-shot toxic image detection. SafeCLIP projects the discarded CLS token of CLIP into the text space and compares the result with toxic descriptors. The method detects harmful visual inputs without architecture changes and with low overhead. The result shows that the existing alignment structure already contains useful safety signals.

Ma et al. [56] propose ContextGuard-LVLM for detecting fine-grained contextual inconsistency between news images and text. ContextGuard-LVLM goes beyond entity matching and checks narrative, sentiment, and logical coherence. The setting targets multimodal misinformation rather than generic jailbreak defence, but the method shows that consistency checks can act as guardrails when the attack relies on subtle semantic mismatch rather than explicit toxicity.

Output filtering and revision: A third family changes generation during or immediately after decoding. Gao et al. [57] propose Constitutional Calibration (CoCA), which measures the logit difference between decoding with and without a safety principle and adds the calibrated difference back into decoding. Their idea is simple: multimodal models still retain some safety awareness from the LLM backbone, but the modality gap weakens that awareness. CoCA restores part of that awareness by amplifying safety-aware directions in the output distribution.

Ghosal et al. [58] propose Immune, an inference-time defence that guides decoding with a safety reward model. Immune does not retrain the MLLM. It instead reformulates safety alignment as a KL-regularised decoding problem and steers generation towards safe responses token by token. The formulation makes Immune a clear example of output-side inference-time alignment.

Ding et al. [59] introduce evaluating then aligning safety (ETA), a two-phase framework that first evaluates visual inputs and candidate outputs for safety and then aligns generation with an interference prefix and sentence-level best-of-N search. ETA combines pre-generation evaluation with output-side revision, reducing unsafe behaviour while preserving helpfulness.

Activation space monitoring and steering: The fourth family of guard-rails acts directly on hidden-state space. Some methods monitor internal activations for safety-relevant signals. Other methods steer intermediate representations away from harmful regions.

Wang et al. [60] propose ASTRA, a clear example of inference-time activation steering for VLM jailbreak defence. ASTRA constructs harmful directions from adversarial visual tokens and subtracts the harmful component from hidden activations during inference. The method shows that activation steering can suppress harmful multimodal behaviour without rewriting the raw input or changing model parameters.

Jiang et al. [61] propose HiddenDetect, which monitors hidden activations and trains lightweight probes to distinguish safe inputs from unsafe or jailbroken inputs. HiddenDetect shows that LVLMs already encode safety-relevant information in their internal states, and that simple probes can use these signals to enable a tuning- free guardrail.

Some methods act on more structured internal states. Jiang et al. [62] propose Dynamic Token Reweighting (DTR), which estimates a safety-relevant distributional shift induced by visual modality and then reweights visual tokens in the key-value cache to suppress adversarial influence. Chen et al. [63] propose SafePTR, which identifies a small set of harmful multimodal tokens at vulnerable early-middle layers, prunes those tokens, and restores benign features at later layers. Both methods show that multimodal jailbreak defence benefits from targeting the internal states where harmful information becomes causally influential.

Darabi et al. [64] propose EigenShield, which filters adversarial noise by separating causal and correlational subspaces in high- dimensional VLM embeddings with Random Matrix Theory. EigenShield does not use explicit steering vectors, but still belongs in the same taxonomy branch because the method defends by monitoring and transforming internal representations rather than only filtering inputs or logits.

The papers categorised under Model Guardrails show a shift from static blocking to layered inference-time control. Malicious input detectors screen explicit harmful content or policy violations before full generation begins [51–54]. Cross-modal consistency methods check whether image and text jointly make sense, which helps against semantic manipulation and contextual attacks [55, 56]. Output revision methods require access to decoding logits, safety reward models, or candidate generations and improve safety by steering or selecting outputs online [57–59]. Activation-space methods require hidden activations, token states, or spectral subspaces and intervene more directly in the model internals [60–64]. Robust multimodal guardrails rarely succeed by checking only the surface form of the input. Stronger guardrails combine semantic screening, internal-state monitoring, and decoding control.

5.1. Critical Analysis and Limitations

No single defence protects the full multimodal pipeline. Input sanitisation changes the input before joint reasoning starts. Model guardrails screen, revise, or steer behaviour during inference [43, 47, 58, 61]. Each family targets a different failure mode. A practical system, therefore, needs several layers. Proactive alignment lowers the base risk. Reactive defences catch failures that still appear at inference time [34, 51, 57, 60].

Adaptive attacks remain a major gap. Many defence papers test a fixed attacker that does not optimise against the defence rule. ADBM makes this point for diffusion purification and argues that earlier evaluations often used weak adaptive attacks [45]. EigenShield shows it for heuristic inference-time defences [64]. A defence that blocks a fixed benchmark often degrades once the attacker knows the safeguard. Current methods usually raise attacker cost but rarely close the attack surface.

Deployability is also uneven. AdaShield and LlavaGuard work outside the base model and fit closed systems more easily [47, 52]. CoCA needs decoding logits. DTR needs the key-value cache. ASTRA and HiddenDetect need hidden activations [57, 60–62]. Many commercial APIs do not expose those signals. Strong results on open models, therefore, do not always transfer to real deployments.

Transfer across domains is still limited. SafeCLIP targets toxic images [55]. SafeWatch targets video moderation [53]. ContextGuardLVLM targets image–text mismatch in news verification [56]. Safety Mirage shows the same problem in proactive alignment: shallow training signals do not generalise well [35]. The main conclusion is simple. Multimodal defence is a system-design problem. Standalone safeguards remain weak. Layered defences are more robust.

5.2. Evaluating Adversarial Robustness and Safety

A defence claim is only as strong as the evaluation behind it. Weak attacks, incomplete protocols, and easy benchmarks can make a weak defence look strong [65, 66]. Multimodal systems add new failure modes. Unsafe meaning can appear only after the fusion of modalities. Long conversations can reveal harms that single- turn prompts miss. Tool use, memory, and sequential planning can enable a single injected signal to affect many later steps [10, 67–69]. A rigorous evaluation, therefore, needs a protocol, not only a score table.

5.3. Why Multimodal Evaluation Is Different?

Multimodal evaluation differs from unimodal evaluation for three reasons. First, unsafe meaning may appear only after the model combines modalities. MSTS was designed around exactly that setting: each prompt becomes unsafe only when the image and text are interpreted together [67]. Second, safety depends on context. Multimodal situational safety shows that the same language query can be safe in one scene and unsafe in another, so the model must reason about the situation, rather than react to keywords alone [69]. Third, many deployed systems are no longer single- step predictors. Agents use tools, store memory, revisit earlier content, and act over time. ARE was introduced because prompt-response evaluation does not cover that setting [10].

Recent system cards support the same conclusion. Claude Sonnet 4.6 reports single-turn tests, higher-difficulty tests, ambiguous- context tests, multi-turn tests, agentic safety tests, prompt- injection tests, and adaptive-attacker tests across coding, browser, and computer-use settings [70]. GPT-5.4 Thinking reports challenging production-style benchmarks, dynamic multi-turn evaluations, representative-prompt re-sampling, multi-turn jailbreak evaluation, prompt-injection tests, image-input safety tests, destructive-action avoidance, and preservation of user work in long computer-use traces [71]. Real deployment is broader than static benchmark scoring. Evaluation must reflect that broader setting.

7.1. Benchmarks by Evaluation Role

Benchmarks are most useful when grouped by what they isolate. A first group targets direct adversarial robustness. Zhao et al. [75] study targeted black-box attacks on open VLMs and showed that transferred adversarial examples, together with black-box queries, can achieve a high rate of targeted evasion. SneakyPrompt plays a similar role for text-to-image systems by measuring prompt-side filter bypass under realistic query budgets [72]. CAA extends the same logic to conversational audio systems [73].

A second group isolates harms that arise from multimodal meaning itself. MSTS tests hazards that emerge from image–text fusion [67]. MMSafeAware measures missed harms and over-refusal [68]. Multimodal situational safety evaluates whether a model can judge safety from the surrounding scene rather than from the query alone [69]. These benchmarks are complementary as each isolates a different failure mode.

A third group supports broader or more diagnostic auditing. Qiu et al. [74] benchmark multimodal robustness under distribution shift and add metrics, such as Multimodal Impact (MMI) and Missing Object Rate (MOR), to diagnose how perturbations change system behaviour across tasks. MMDT broadens the lens further by evaluating safety, hallucination, fairness, privacy, adversarial robustness, and out-of-distribution generalisation within a single framework [78]. ARE fills the agentic gap by evaluating full attack episodes against multimodal web agents [10]. No single benchmark covers all of these roles. Complementary benchmark choice matters more than raw benchmark count.

7.2. Evaluation Gaps and Minimum Reporting Checklist

Many evaluations have four major gaps. First, many studies still rely too heavily on fixed attacks and static prompts. Adaptive attackers often expose failures that benchmark-style attacks miss [65, 66]. Second, many evaluations still underweight deployment realism. Real systems use dialogue, tools, memory, and long-action chains, while many published benchmarks remain short and static [10, 69]. Third, judge reliability remains imperfect. Open-ended evaluation requires automated judging, but the strongest current studies still validate judges against humans rather than blindly trusting a single automatic labeller [67, 73, 77]. Fourth, closed-model opacity limits direct white-box testing and makes realistic grey-box and query-based audits more important [75, 79].

The checklist below summarises a minimum reporting standard for defence evaluation.

Multimodal evaluation is not a scoreboard problem but rather a protocol design problem. A useful evaluation matches the deployed system, uses complementary data and attacks, measures safety and utility together, validates automatic judges against human consensus, and reports uncertainty rather than one-shot scores. The field now has the pieces to do this well. The field still needs more consistent use of those pieces.
